Mogami 2549 Balanced XX Series Deep Cryo Treated
Mogami 2549 Balanced, Neutrik XX Series XLR, Custom Length, Deep Cryo Treated
Our PriceCAD $40.91
Deep Cryo Treated Custom XX Series Mogami 2549 Balanced Interconnect
Our Deep Cryo Treated XX Series Balanced Cables use the Neutrik XX Series
XLR connectors. We install these connectors using the Neutrik BTXX
installation tool to get a positive full lock on the bushing without

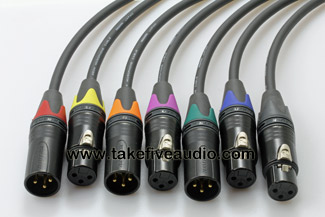

applying twisting stress to the cable. The XX Series cables can also be
ordered with bushings in any one of seven colours, black is standard.
These custom XLR cables can be ordered in the lengths you need with the
options you want in just a few clicks. We offer these cables in lengths up to 50 ft, their lower capacitance makes them ideal for longer runs.
Mogami 2549 is a twin-axial cable that has been designed using Neglex OFC to provide the highest quality of
audio reproduction in any application. It features 22 AWG conductors and
lower capacitance than the 2534. The served shield and twisted pair
construction is excellent at preventing noise caused by EMI. This cable
is recommended when high frequencies are important and longer cable runs
Our measurements are done on actual finished cables,
these results can be quite different than the manufacturer specs for
the same cable. Measurements for raw unterminated cables are usually
based on conductor-conductor and conductor-shield readings on long
lengths of unterminated cable.
per ft measurements are a good guideline to determine the suitability
of a cable for an application but in most cases they cannot be
extrapolated to give you the specs of a given length of finished cable.
The reason for this is that they do not take into consideration the
variables that come into play when a cable is terminated such as
telescoped shields, conductor grouping and the connectors themselves. The results below are for the finished cable of the noted length.
All cable testing is performed on an Instek LCR-819 at 1kHz, 1V, 20C
|Length of Cable Under Test
|Capacitance (cond-cond): 47.772 pF
|Inductance (cond-cond): .00073 mH
|Resistance: .04680 Ohm
The base $40.91 (CDN) cable consists of:
(1) 3 ft Mogami Deep Cryo Treated 2549 Balanced Interconnect terminated with Deep Cryo Treated Neutrik NC3FXX-B and NC3MXX-B connectors. The price will adjust automatically when you choose a different length. PLEASE NOTE: the base price is for 1 cable, if you need a stereo pair (or more) change the quantity to the number required. You can order as many cables as you need, in different lengths and terminations by hitting the "order" button after selecting each cable. Each cable may also be ordered with a different coloured bushing to make channel identification easy.
The Deep Cryo Treated Neutrik NC3FXX-B and NC3MXX-B are high quality black body connectors with Gold plated contacts. Information on the Neutrik connectors can be found by following the links above. Solder termination is done using a precision OK International MFR Cartridge System and Mundorf Silver/Gold solder.
the cable length and your choice of bushing colour, then press the order
button. The total cost of the cable will appear in the shopping cart at
the top of the right hand navigation bar. Click
"view cart" to see an itemized list of the cables ordered. Shipping
cost and any applicable taxes will be applied during checkout. Once the order is placed the cables are constructed
to your specs and will ship next business day unless you decide to have
them pre-conditioned on our cable cooker. Please allow five days for
the pre-conditioning process.
If you have your cables pre-conditioned
(burned in) on our audiodharma Cable Cooker they will require only a
minimal amount of time to reach their full potential, typically about one
day of normal use to settle in and another 2-3 days of normal use to
reach about 90-95% of it's full potential.
The parts used in this cable have been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
