Mogami 3103 Deluxe Deep Cryo Treated
Mogami 3103 Deluxe Speaker Cable, Deep Cryo Treated, Custom Length
Our PriceCAD $110.28
CodeDCT MOG 3103DLX
Mogami 3103 Deluxe Speaker Cables
Our new 3103 Deluxe speaker cables feature all Deep Cryo Treated parts in their construction as well as an attractive black tightweave sleeve and printed shrinktubes. These cables are available in configurations using spade or banana connections.
Mogami 3103 speaker cables were designed to deliver maximum performance from
state-of-the-art Systems. They offer true audiophile performance for
accurate sound transmission with clear transparent response yet possess a
rugged superflexibilty for the most demanding applications. Each
conductor features many strands in rope-lay of famous MOGAMI 'Neglex'
Oxygen-Free-Copper within colour-coded PVC insulation. A tough, low
profile matte black superflexible PVC jacket protects the cables.
- Two 12 AWG conductors.
- PVC Insulation.
- 12.0 mm Diameter.
- Matte Black jacket.
- Deep Cryo Treated
Our measurements are done on actual finished cables,
these results can be quite different than the manufacturer specs for
the same cable. Measurements for raw unterminated cables are usually
based on conductor-conductor and conductor-shield readings on long
lengths of unterminated cable.
per ft measurements are a good guideline to determine the suitability
of a cable for an application but in most cases they cannot be
extrapolated to give you the specs of a given length of finished cable.
The reason for this is that they do not take into consideration the
variables that come into play when a cable is terminated such as
telescoped shields, conductor grouping and the connectors themselves. The results below are for the finished cable of the noted length.
All cable testing is performed on an Instek LCR-819 at 1kHz, 1V, 20C
|Length of Cable Under Test
|Capacitance: 163.21 pF
|Inductance: .00121 mH
| Resistance: .00945 Ohm
The base $110.28 (CDN) cable consists of:
(1) 6 ft Deep Cryo Treated Mogami 3103 speaker cable with black tightweave sleeve and terminated at both ends with Deep Cryo Treated connectors. The price will adjust
automatically when you choose a different length. PLEASE NOTE: the base price is for 1 cable,
if you need a stereo pair (or more) change the quantity to the number
required. You can order as many cables as you need, in different lengths
and terminations by hitting the "order" button after selecting each

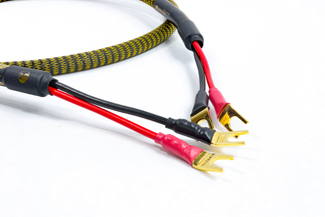

use only high quality Deep Cryo Treated Copper Alloy connectors on our custom cables. The
standard termination for our cables is the Vampire HDS1. This is a
direct gold plated, copper alloy spade. The HDS1 is a 1/4" spade that will fit standard 1/4" binding posts.
The Vampire HDS3
5/16" spade is available as an optional termination. This spade is the
same quality construction as the HDS1, the only difference is the larger
size. If you are ordering spade terminations for your cables be sure to
check the binding post sizes on your amps and speakers to ensure you
are ordering the correct size for your application. If you order your cables in a bi-wire configuration we use the Vampire HDS5 if 1/4" spades are required.
The Deep Cryo Treated Vampire BAR
barrier spade is available for those of you who are connecting speakers
with barrier spade connections such as Vandersteen or certain tube
amplifiers with barrier spade output terminals.
We also offer optional 4mm banana connections. We are using the Multi-Contact LS4 banana because of the excellent sonics and low mass. The rolled design
of these connectors makes a tight fit in every binding post we have
tried them in. Solder termination is done using a precision OK International MFR Cartridge System and Mundorf Silver/Gold solder.
Our spade connectors are applied using a high pressure die which creates a
"gas tight" crimp connection. The wire is also given a generous
treatment of DeoxIt Gold before the spade is pressed on to ensure the
best contact and to inhibit corrosion.
Spade and banana
connections are covered with adhesive lined Polyolefin shrinktube to
offer strain relief and to help seal the connection point and conductor
from the environment. Amplifier leads and Non-biwire speaker leads are also colour coded with shrinktube. We only use marker grade Crosslinked Polyolefin shrinktube in our cable construction.
the cable length you need for your application, then press the order
button. The total cost of the cable will appear in the shopping cart at
the top of the right hand navigation bar. Click
"view cart" to see an itemized list of the cables ordered. Shipping
cost and any applicable taxes will be applied during checkout. Once the order is placed the cables are constructed
to your specs and will ship next business day unless you decide to have
them pre-conditioned on our cable cooker. Please allow 5 days for
the pre-conditioning process.
If you have your cables pre-conditioned
(burned in) on our audiodharma Cable Cooker they will require only a
minimal amount of time to reach their full potential, typically about one
day of normal use to settle in and another 2-3 days of normal use to
reach about 90-95% of it's full potential.
The parts used in this cable have been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
