ViaBlue T6S Banana Plugs Cryo Treated

ViaBlue T6S Banana Plugs Cryo Treated

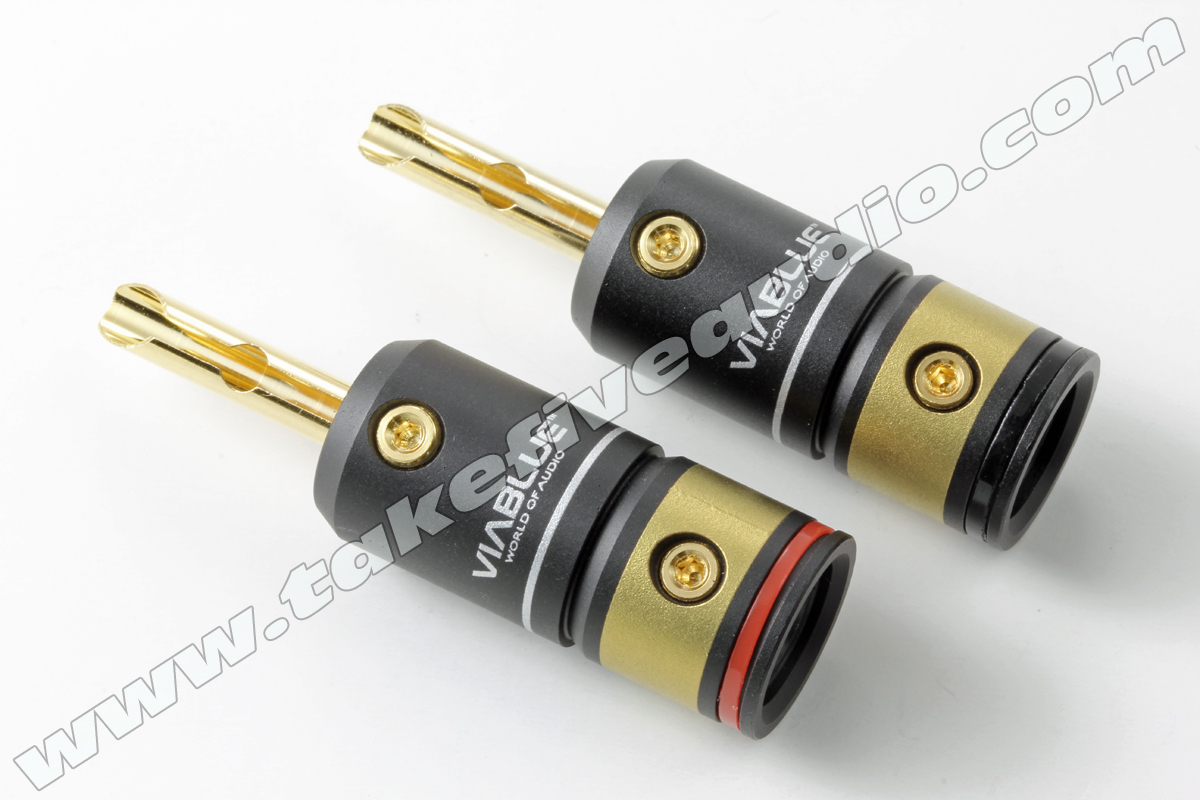

ViaBlue T6s Banana Plugs, Cryo Treated, 1 pr.
Our PriceCAD $35.49
CodeDCT VB T6BAN
Weight Kg.075
In Stock
No Reviews
Save wishlist

ViaBlue™ T6s Banana Plugs have contact pins made of bronze which are 24 carat gold-plated. The shells are made of aluminum. Cables up to 9.5 mm diameters can be installed. All connectors of the T6s series are supplied including two diameter reducers. The contacts on the T6s series of connectors are interchangeable and are also sold separately. You can easily change spade to banana contacts in minutes simply by unscrewing the existing contact and replacing with the desired contact.

For the assembly the stripped cable ends are soldered at the contact parts of the T6s plugs. The contact part can be removed completely from the plug's shell. The M4 screw serves as strain relief. The shell for all plugs (exception: XLR plugs) of the ViaBlue™ T6s series is identical. Only the contact parts change.

Each T6s plug contains two diameter reducers which serve for a firm strain relief and centric adjustment of the cables. The small diameter reducer has an outer diameter of 7.5 mm and an inner diameter of 4.5 mm. Thus cables with an outer diameter of 3 mm up to 4.5 mm can be fixed firmly. The big diameter reducer has an outer diameter of 9.5 mm and an inner diameter of 7.5 mm. Thus cables with an outer diameter from 5 mm to 7.5 mm can be fixed firmly. Without using any diameter reducer cables with diameters from 7.5 mm to 9.5 mm can be installed.

VIABLUE™ T6s SERIES. THE 6TH SENSE

Technical specifications:
  • Max outer diameter: 13.5 mm
  • Contact: 4 mm tube
  • Finishing: 24 Karat Gold plated
  • Total length: 49.1 mm
  • Max cable input: for cables with Ø 3 - 9.5 mm
  • Marking: black / red
  • Screws: 1.5 mm Hexagon
  • Packing: 1 pair

This part has been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
