Switchcraft 35LJNAU 3.5 Stereo Phone Jack Cryo Treated

Switchcraft 35LJNAU 3.5 Stereo Phone Jack Cryo Treated
Switchcraft 35LJNAU 3.5 Cord Mounted Stereo Phone Jack, Deep Cryo Treated, 1 pc
Our PriceCAD $15.95
CodeDCT SC 35LJNAU
Weight Kg.016
In Stock
No Reviews
Save wishlist

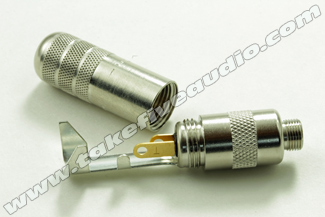

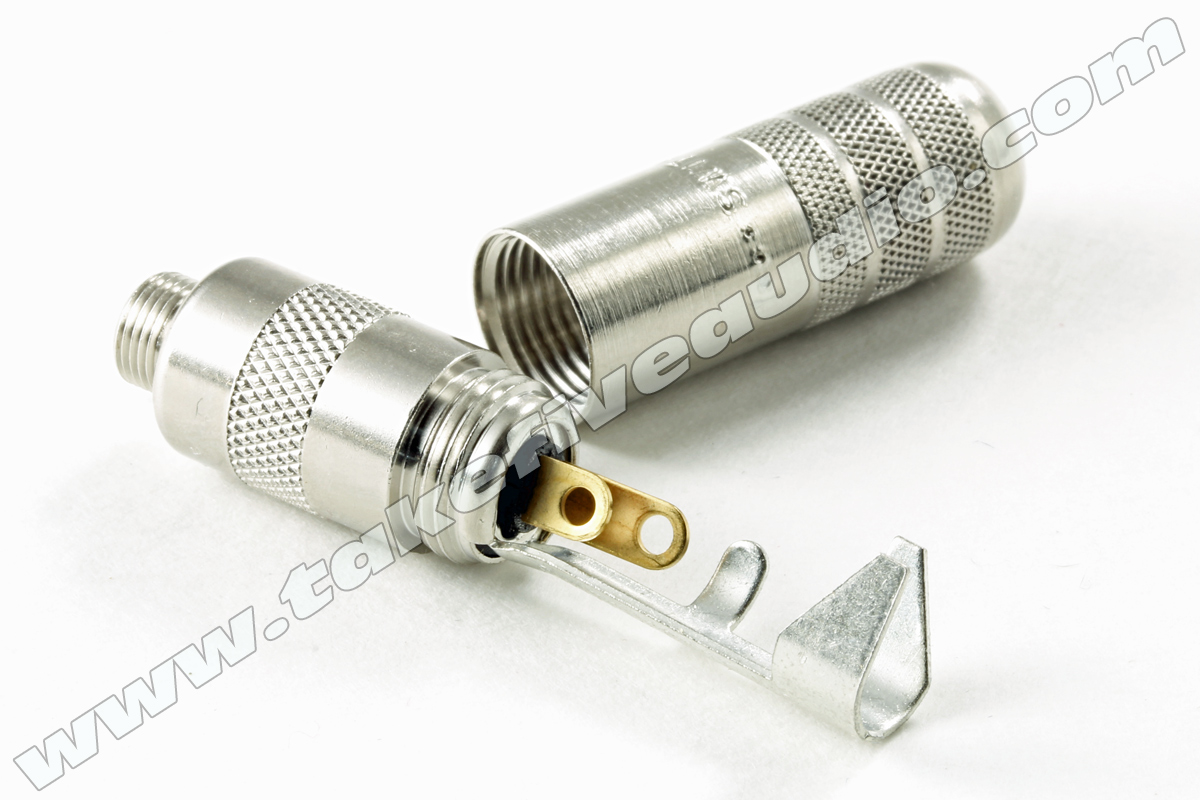

Switchcraft 35LJNAU

3.5 mm inline jacks with sturdy solid metal housing. Rated to 5000 insertion/ withdrawal cycles. Two piece design simplifies terminations. Mates with 35HD series locking or any non-locking plug.

Electrical Specifications

  • Contact Resistance: 0.020 ohms
  • Insulation Resistance : 2000 megohms
  • Dielectric Withstand Voltage:  250VAC

Mechanical Specifications

  • Insertion Force: 8 lbs MAX
  • Withdrawal Force: 1lbs MIN
  • Life Cycles: 5K
  • Max Soldering Temp/Time: 800°F/10s or 700°F/20s
  • Vibration per MIL-STD-202F Method 201
  • Thermal Shock per MIL-STD-202F Method 107G

Material Specifications

  • Sleeve: Copper alloy, nickel Plated
  • Handle: Copper alloy, nickel Plated
  • Cable Clamp: C.R.S., tin-plated
  • Solder Terminal: Copper alloy, gold plated
  • Insulator: Thermoplastic, black

This part has been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
