WBT 0152 Cu Male RCA Pair Cryo Treated
WBT 0152 Cu Male RCA, Deep Cryo Treated, Set of 2
Our PriceCAD $120.00
CodeDCT WBT 0152 CU 2PC
Topline RCA plug with nextgen™ technology
with signal conductor made of pure copper
WBT-0152 Cu lies with its transmission bandwidth of up to 200 MHz far in excess of the transmission bandwidth of conventional RCA plugs.
Through the collect chuck device which works like a chuck of a drill machine the plug’s outer contact once inserted clamps firmly to the RCA socket. The maximum contact pressure provides not only a secure connection, but also minimizes the transition resistance.
Thanks to the two-piece clamping sleeve the sleeve’s cone does not turn while the clamping sleeve is tightened and thus the contact elements are not exposed to twisting pressure. Besides, this way dimension inaccuracy of the outer contacts of the female sockets are compensated for.
The centre pin is slotted and slightly bent up and thus guarantees with its firm spring feature a long-lasting secure electrical connection with lowest transition resistance possible.
The body element is made of brass (nickel-free gold plated) in order to accept rigid and particularly thick cables. The metal connector body is of course electrically uncoupled from the central contact unit and is made of as little metal as possible so that also WBT-0152 Cu is free from eddy current to a large extent.
Other than for digital outputs it is very important for phono outputs (record players, microphones) to have a good shielding against electromagnetic interfering fields. The undesirable interspersions can be very high depending on the nature of the devices and first of all on what they are surrounded by (cellular phones, computers etc.). WBT-0110 nextgen™ pure was designed as the perfect RCA plug for digital links, the new WBT-0152 Cu optimizes analogue connections. WBT-0152 Cu has the more conductive and with the minus contact element connected brass clamping sleeve in order to provide the necessary electromagnetic shielding.
Cable diameter: up to 10.8 mm

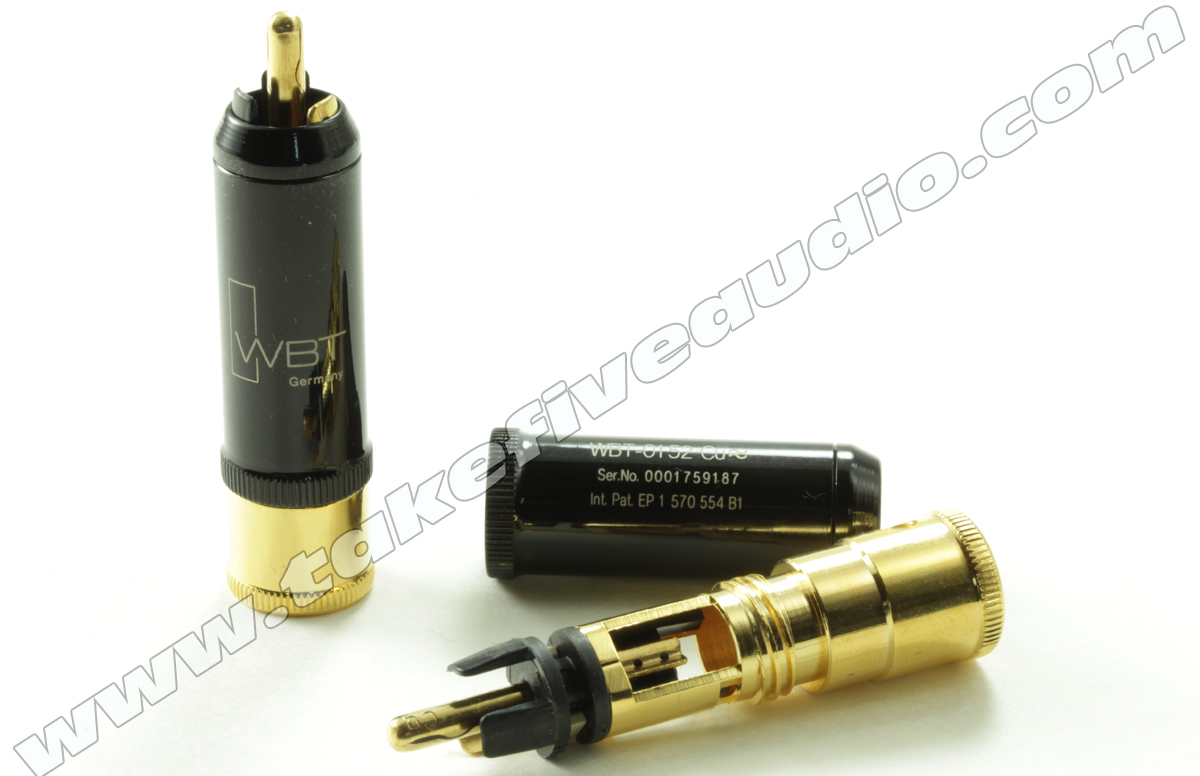

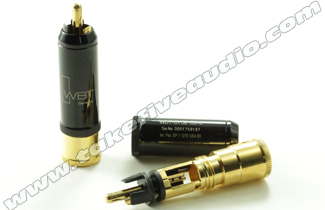

This set contains 2 WBT-0152Cu connectors, (as in photo).
This part has been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
