Features and Benefits
3 pole right angle female cable connector, black metal housing, gold contacts.
The RX Series is the right angle version of the XX
cable connector series. The successor of the RC series offers several
new features which make it more reliable, easier to
assemble and improves contact integrity as well
cable strain relief.
- Extra slim right-angle connector

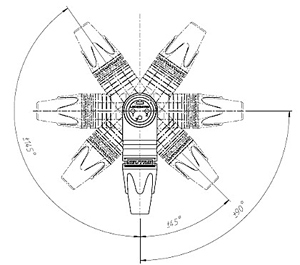

- 5 selectable cable outlet positions
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
Cable O.D. range: 3.5 - 8.0 mm (may be used with cable up to 10mm OD with optional BXX-14 bushing)
Max. wire size: 2.5 mm2 / AWG 14
Contacts: Bronze (CuSn8) with Gold Plating
We also stock the coloured bushings and colour coding rings for these connectors.
This part has been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
