TFA 2534 Phono Cables RCA Deep Cryo Treated
TFA 2534 Phono Cables c/w Shield Shunts, RCA, Deep Cryo Treated, Custom Length
Our PriceCAD $149.91
CodeDCT 2534PHO
Weight Kg0.310
In Stock
No Reviews
Save wishlist

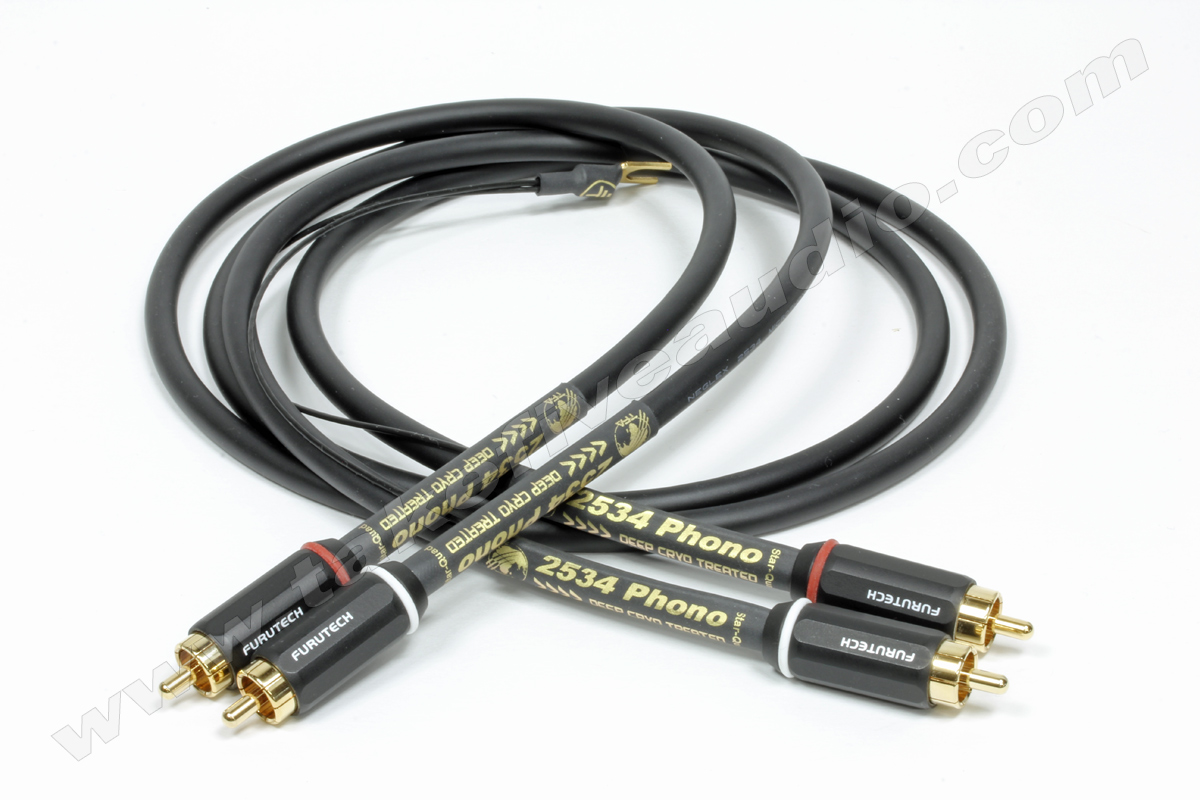

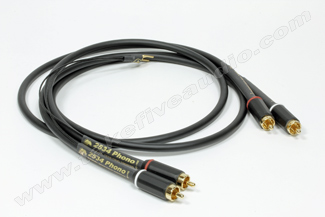

Custom Terminated TFA 2534 RCA Phono Cables Deep Cryo Treated
These cables are optimized for use between your turntable (cartridge) and phono stage. The 2534 Phono can be ordered in several lengths to suit your needs. PLEASE NOTE: The shield shunt does not provide a ground connection.
Mogami 2534 is
a balanced quad structure which is effective for high definition sound transmission as well as in canceling electromagnetic induction caused by nearby equipment. Super-flexible Quad-balanced NEGLEX OFC conductors and Overall Served (spiral) Shield provide maximum definition, detail and signal transparency. This cable is well suited for cartridge level signals.
Cable Measurements
Our measurements are done on actual finished cables,
these results can be quite different than the manufacturer specs for
the same cable. Measurements for raw unterminated cables are usually
based on conductor-conductor and conductor-shield readings on long
lengths of unterminated cable.
These
per ft measurements are a good guideline to determine the suitability
of a cable for an application but in most cases they cannot be
extrapolated to give you the specs of a given length of finished cable.
The reason for this is that they do not take into consideration the
variables that come into play when a cable is terminated such as
telescoped shields, conductor grouping and the connectors themselves. The results below are for the finished cable of the noted length.
|
Test Parameters
All cable testing is performed on an Instek LCR-819 at 1kHz, 1V, 20C
|
Length of Cable Under Test
3 feet
|
Measurements
|
Capacitance: 103.66 pF
|
Inductance: .00022 mH
|
Resistance: .03357 Ohm
|
The base $142.91 (CDN) cable set consists of:

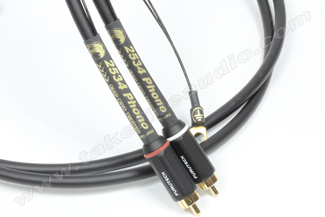

(1) 2ft pair Deep Cryo Treated Mogami 2534 RCA Interconnect terminated with Furutech FP-126(G) Gold plated RCA connectors with shunts attached to floating shields. The Shunts attach to the ground post of your phono preamp and are available in two lengths to suit most preamps, 6" and 12". These cables are sold as a pair.

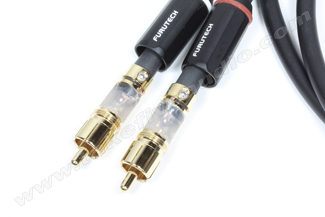

The Furutech FP-126(G) are premium quality RCA connectors featuring copper alloy body with Teflon insulation and OCC centre pin, all contacts are Gold plated. Solder termination is done using a precision OK International MFR Cartridge System and Mundorf Supreme solder. After the connectors are attached the connector is filled with damping material which also seals the connections from the atmosphere. The connector is then secured with a special stainless setscrew.
Select
the cable length you need for your application, then press the order
button. The total cost of the cable will appear in the shopping cart at
the top of the right hand navigation bar. Click
"view cart" to see an itemized list of your order. Shipping
cost and any applicable taxes will be applied during checkout. Once the order is placed the cables are constructed
to your specs and will ship next business day unless you decide to have
them pre-conditioned on our cable cooker. Please allow four days for
the pre-conditioning process.
If you have your cables pre-conditioned
(burned in) on our audiodharma Cable Cooker they will require only a
minimal amount of time to reach their full potential, typically about one
day of normal use to settle in and another 2-3 days of normal use to
reach about 90-95% of it's full potential.
The parts used in this cable have been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
|
|
|
| |
