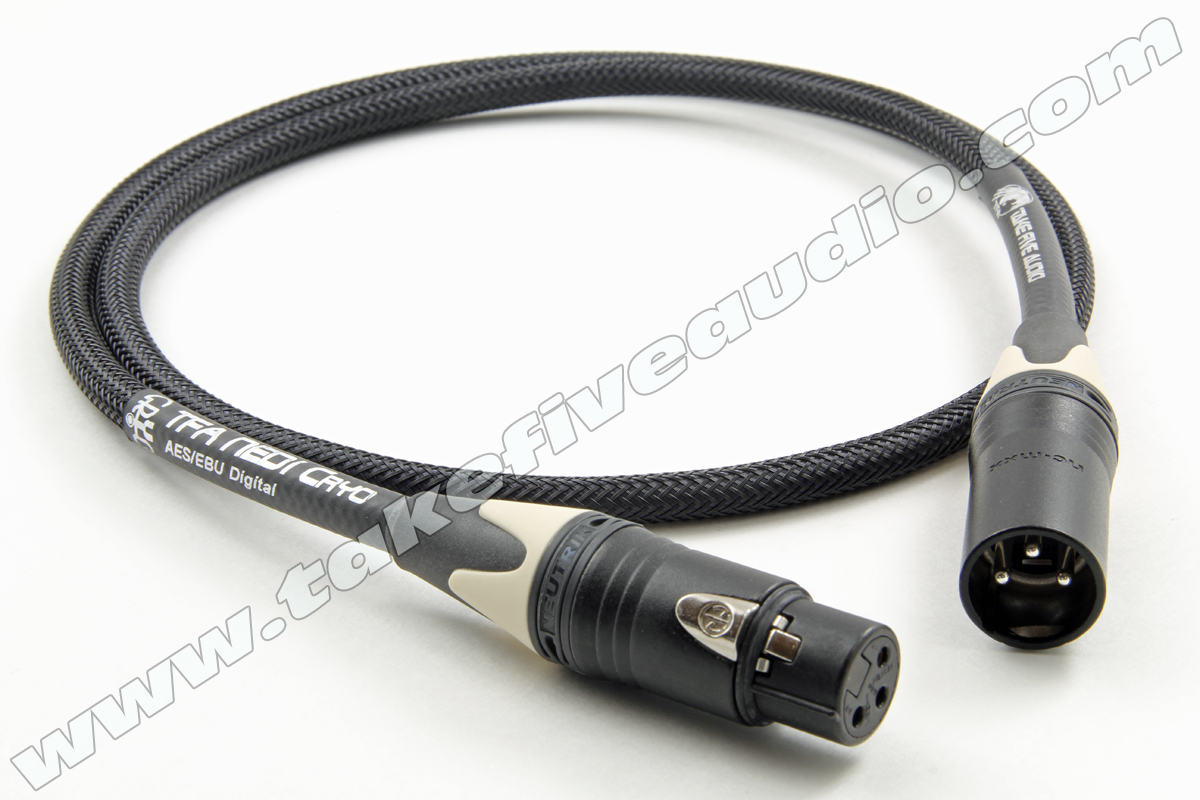

Neotech NEDI-4001 AES/EBU Digital Cable Deep Cryo Treated

Neotech NEDI-4001 AES/EBU Digital Cable Deep Cryo Treated
Neotech NEDI-4001 AES/EBU Digital Interconnect, Custom Terminated, Deep Cryo Treated
Our PriceCAD $73.50
CodeDCT NEDIT
Weight Kg0.150
Ships Next Business Day
No Reviews
Save wishlist
Add to comparison | Compare Products

Custom Terminated AES/EBU Digital Interconnect
We have made it easy to order custom terminated interconnect for your audio system or home theatre. Custom cables can be ordered in the lengths you need in just a few clicks, it's that easy!

Neotech NEDI-4001 is a digital cable designed to meet the 110 ohm spec of the AES/EBU format. The NEDI-4001 is constructed from two 24 awg, Teflon insulated,Silver plated OFC conductors with 100% coverage  foil shield and braided copper shield.

Cable Measurements
Our measurements are done on actual finished cables, these results can be quite different than the manufacturer specs for the same cable. Measurements for raw unterminated cables are usually based on conductor-conductor and conductor-shield readings on long lengths of unterminated cable.
These per ft measurements are a good guideline to determine the suitability of a cable for an application but in most cases they cannot be extrapolated to give you the specs of a given length of finished cable. The reason for this is that they do not take into consideration the variables that come into play when a cable is terminated such as telescoped shields, conductor grouping and the connectors themselves. The results below are for the finished cable of the noted length.
Test Parameters
All cable testing is performed on an Instek LCR-819 at 1kHz, 1V, 20C
Length of Cable Under Test
3 feet
Measurements
Capacitance:    56.137 pF
Inductance:    .00084 mH
Resistance:    .04535 Ohm

The base $73.50 (CDN) cable consists of:
(1) 2ft Deep Cryo Treated Neotech NEDI-4001 Digital Interconnect c/w custom cable markers, terminated with Deep Cryo Treated Silver Plated Neutrik XX Series connectors. The price will adjust automatically when you choose a different length. PLEASE NOTE: the base price is for 1 cable, if you need more than one cable, change the quantity to the number required.

The Deep Cryo Treated Neutrik XLR connectors are high quality XLR connectors with Silver plated contacts and black body. Solder termination is done using a precision OK International MFR Cartridge System and Mundorf Supreme solder.

Select the cable length you need for your application, then press the order button. The total cost of the cable will appear in the shopping cart at the top of the right hand navigation bar. Click "view cart" to see an itemized list of the cables ordered. Shipping cost and any applicable taxes will be applied during checkout. Once the order is placed the cables are constructed to your specs and will ship next business day unless you decide to have them pre-conditioned on our cable cooker. Please allow four days for the pre-conditioning process.

If you have your cables pre-conditioned (burned in) on our audiodharma Cable Cooker they will require only a minimal amount of time to reach their full potential, typically about one day of normal use to settle in and another 2-3 days of normal use to reach about 90-95% of it's full potential.

The parts used in this cable have been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
