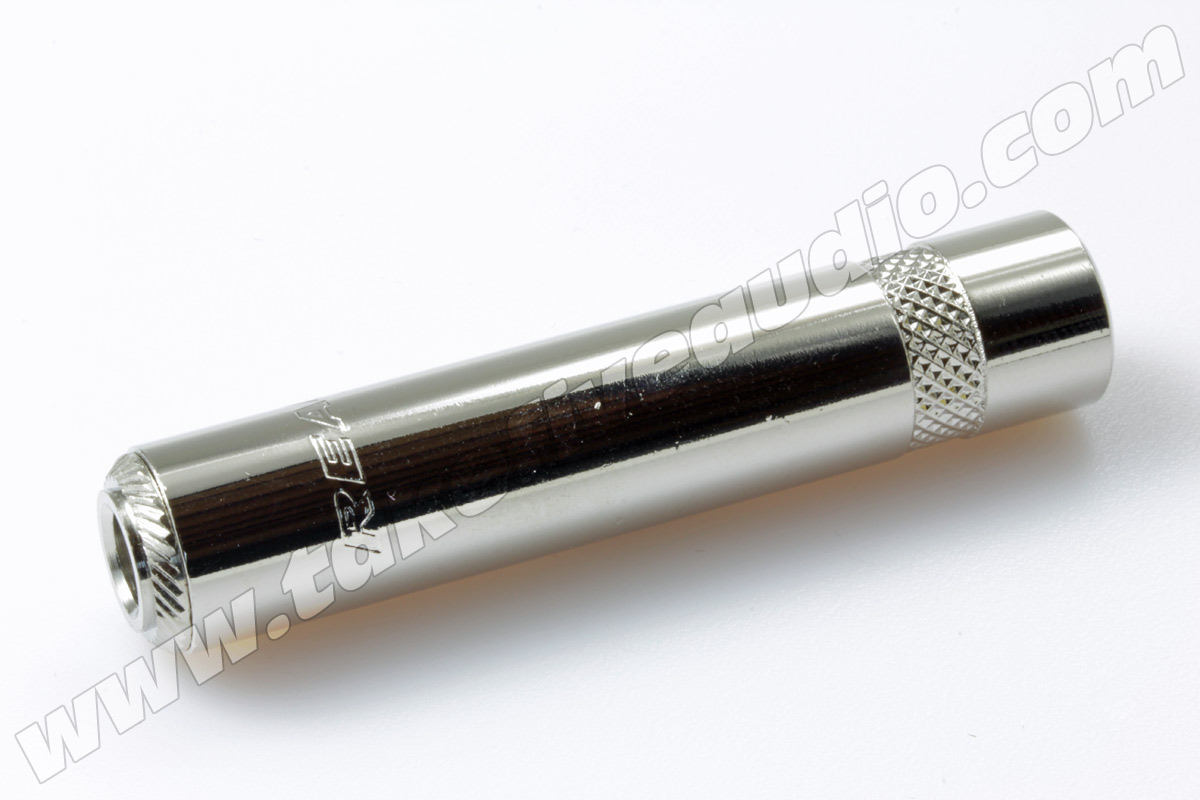

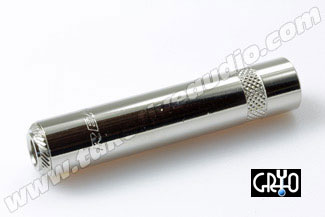

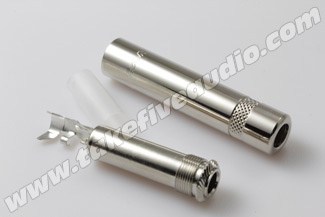

Neutrik NYS2203P Stereo 3-Pole 1/4 Inch Jack Cryo Treated

Neutrik NYS2203P Stereo 3-Pole 1/4 Inch Jack Cryo Treated
Neutrik NYS2203P Full Metal 3-Pole 1/4 Inch Cable Jack, Deep Cryo Treated, 1 pc.
Our PriceCAD $2.99
CodeDCT NEU NYS2203P
Weight Kg.038
In Stock
No Reviews
Save wishlist

Neutrik NYS2203P Full Metal 3-Pole 1/4 Inch Cable Jack / 1/4 Inch Stereo TRS Female

  •     Connector: Type Jack
  •     Gender: female
  •     Contact resistance: < 10 m Ohm
  •     Dielectric strength: 0,5 kVdc
  •     Rated current per contact: 1 A
  •     Cable O.D. = 6 mm
  •     Insertion force = 20 N
  •     Withdrawal force > 10 N
  •     Lifetime: > 1000 mating cycles
  •     Wire size: 24 AWG
  •     Contact plating: SnCe
  •     Contacts: Bronze (CuSn6)
  •     Insert: Polyamide (PA 6 30 % GR)
  •     Shell: Brass (CuZn39Pb3), gal Ni plated
  •     Strain relief: CRIMP type snce plated
  •     Solderability: Complies with IEC 68-2-20
  •     Temperature range: -20 øC to +70 øC

Neutrik AG - offers another superior line of products. Excellent cost-performance ratio, attractive design, and reliable functionality are the strengths of REAN.


This part has been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
