Neutrik NP2X B Mono 1/4 Plug Cryo Treated

Neutrik NP2X B Mono 1/4 Plug Cryo Treated

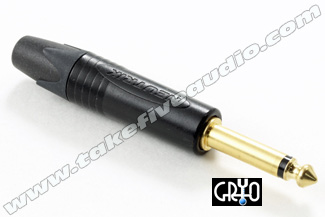

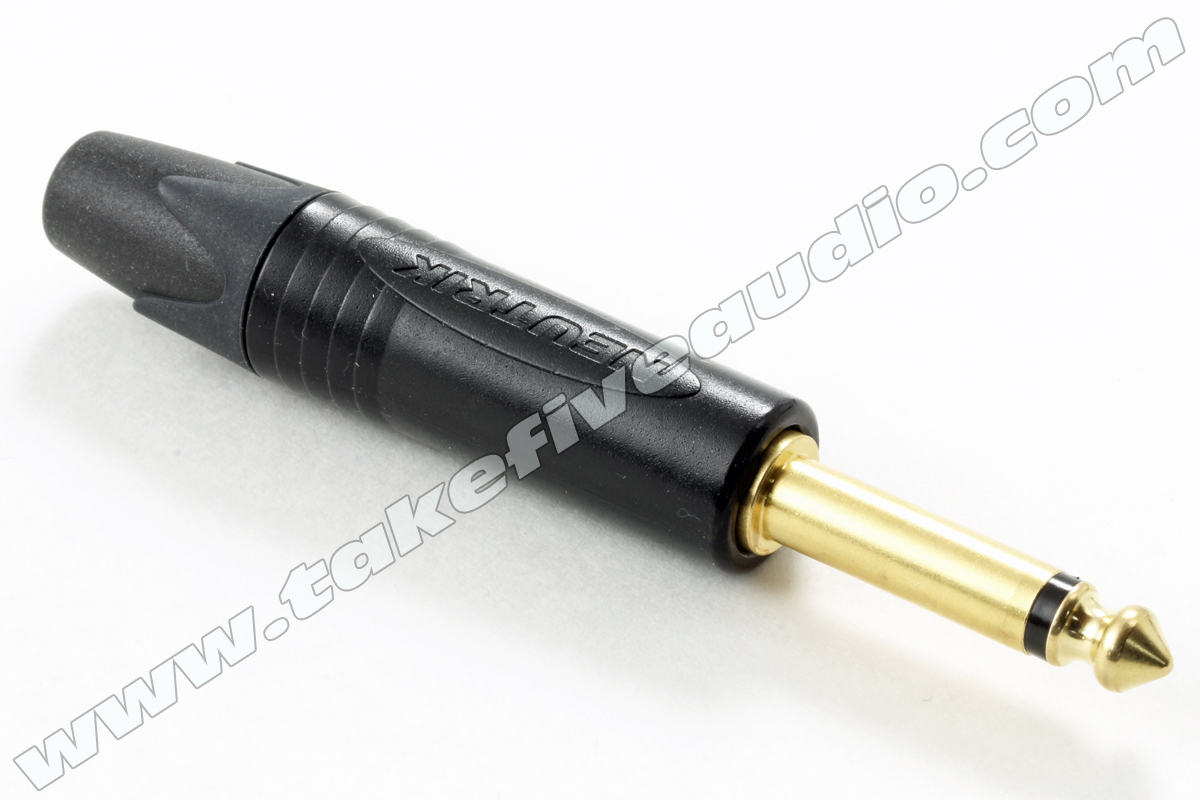

Neutrik NP2X-B 1/4" TS Plug, Deep Cryo Treated, 1 pc.
Our PriceCAD $9.45
CodeDCT NEU NP2X B
Weight Kg.023
In Stock
No Reviews
Save wishlist

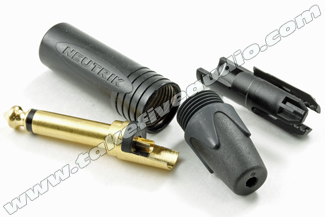

The Neutrik NP2X-B improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

2 pole 1/4" professional phone plug, gold contacts, black shell Deep Cryo Treated.

Features:

    Extra slim 1/4" plug for highest packing density
    Robust diecast shell in stylish design
    Improved chuck type strain relief for reliable cable retention
    Sleek design for best handling convenience
    Precision machined one-piece contacts - avoid hook up of tip contact

Specifications:


    Product
    Connector Type: Plug
    Gender: male

    Electrical
    Contact resistance: depends on mating connector mΩ
    Dielectric strength: 1 kVdc
    Insulation resistance: > 2 GΩ (initial)
    Insulation resistance: ≥ 1 GΩ (after damp heat test)
    Rated current per contact: depends on mating connector A
    Rated voltage: 50 V

    Mechanical
    Cable O.D.: 4 - 7 mm
    Lifetime: > 1000 mating cycles
    Wire size: 1 mm(2)
    Wire size: 18 AWG
    Wiring: Solder contacts

    Material
    Bushing: Polyacetal (POM) + PU
    Contact plating: 0.2 m Au
    Contacts: Brass (CuZn39Pb3)
    Insert: Polyamide (PA 6.6 30 % GR)
    Shell: Zinc diecast (ZnAl4Cu1)
    Shell plating: Black chromium
    Strain relief: Polyacetal (POM)


This part has been Deep Cryo Treated by Take Five Audio, click HERE for full details on our process.
